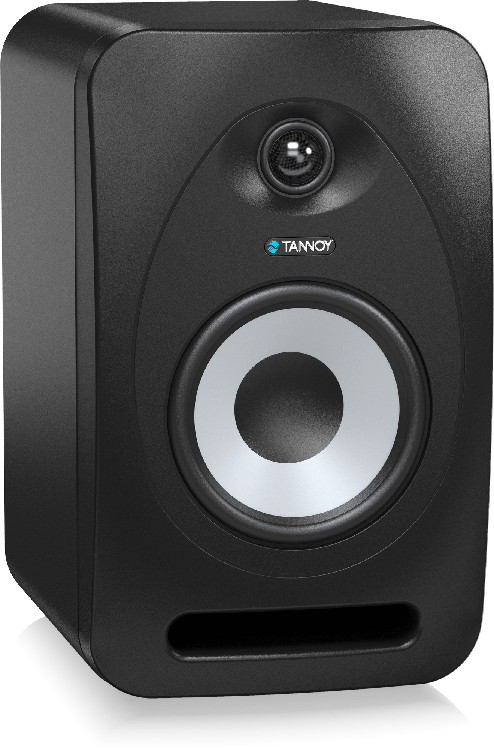

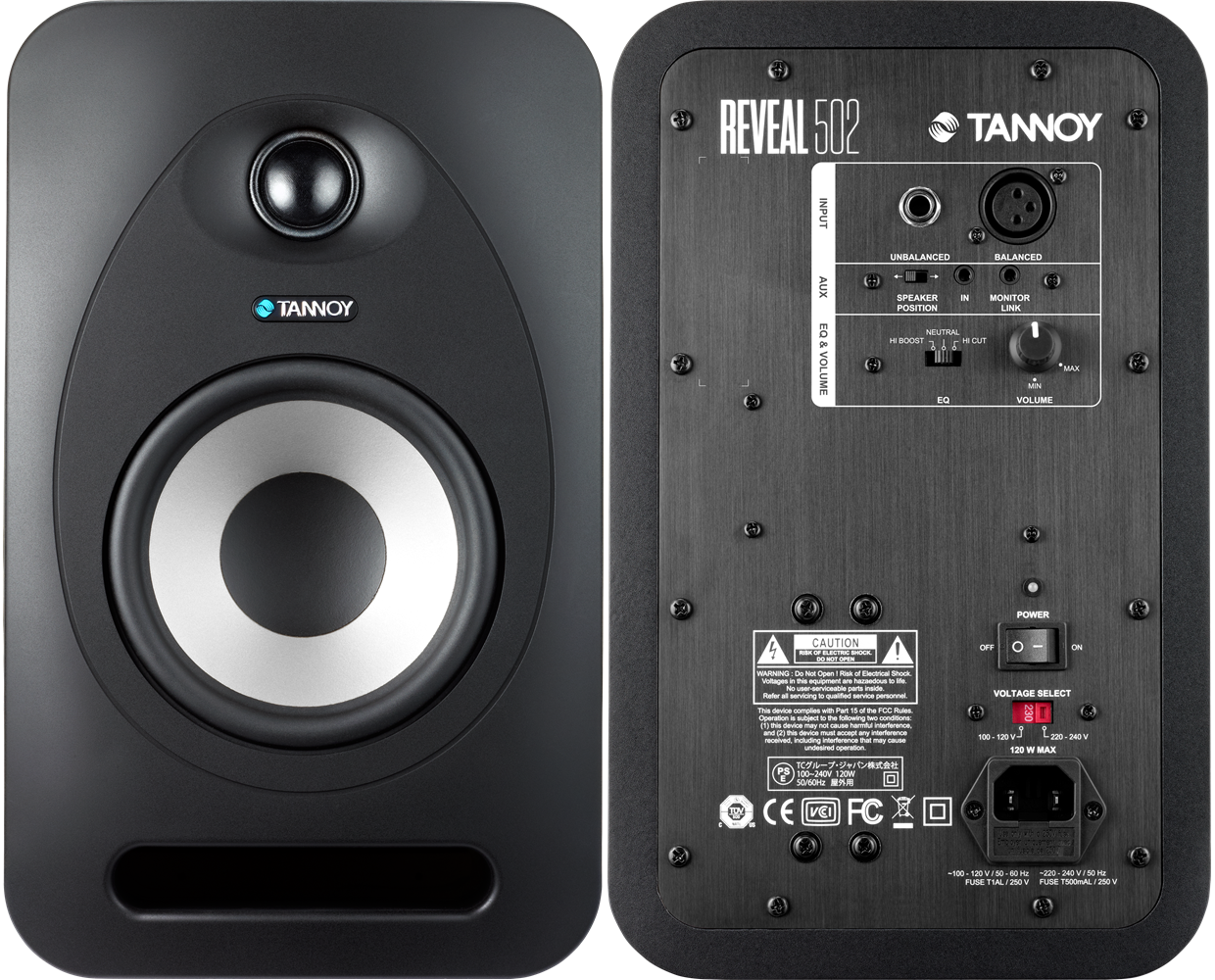

Reveal 502 SPECIFICATIONS
Frequency Response: 49Hz - 43kHz
Max SPL: 108dB
HxWxD Cabinet Dimensions:
11.81" x 7.24" x 9.37"
300mm x 184mm x 238 mm
Membrane Sizes:
Drive Unit Size, LF/Mid Range: 5" (130mm)
Drive Unit Size, HF: 1" (25mm) Soft Dome
Bi-amp Output Power, RMS
LF/Mid Range: 50 Watts
HF: 25 Watts
THD: < 0.7 %
Input Types and Impedances
Balanced: XLR, 20 kOhm
Unbalanced: 1/4" Jack, 10 kOhm
AUX Link: 1/8" Jack, 10 kOhm
Output
AUX Link:1/8" Jack
EQ Options
Neutral HF Setting
+/-1.5 dB HF Boost/CUT
Crossover Frequency: 1.8 kHz
Switchable Power Supply Compatibility:
100-120 V or 200-240 V (50 - 60 Hz)
Max Power Consumption: 120 Watts
Low Frequency Alignment: Optimized Front Port
