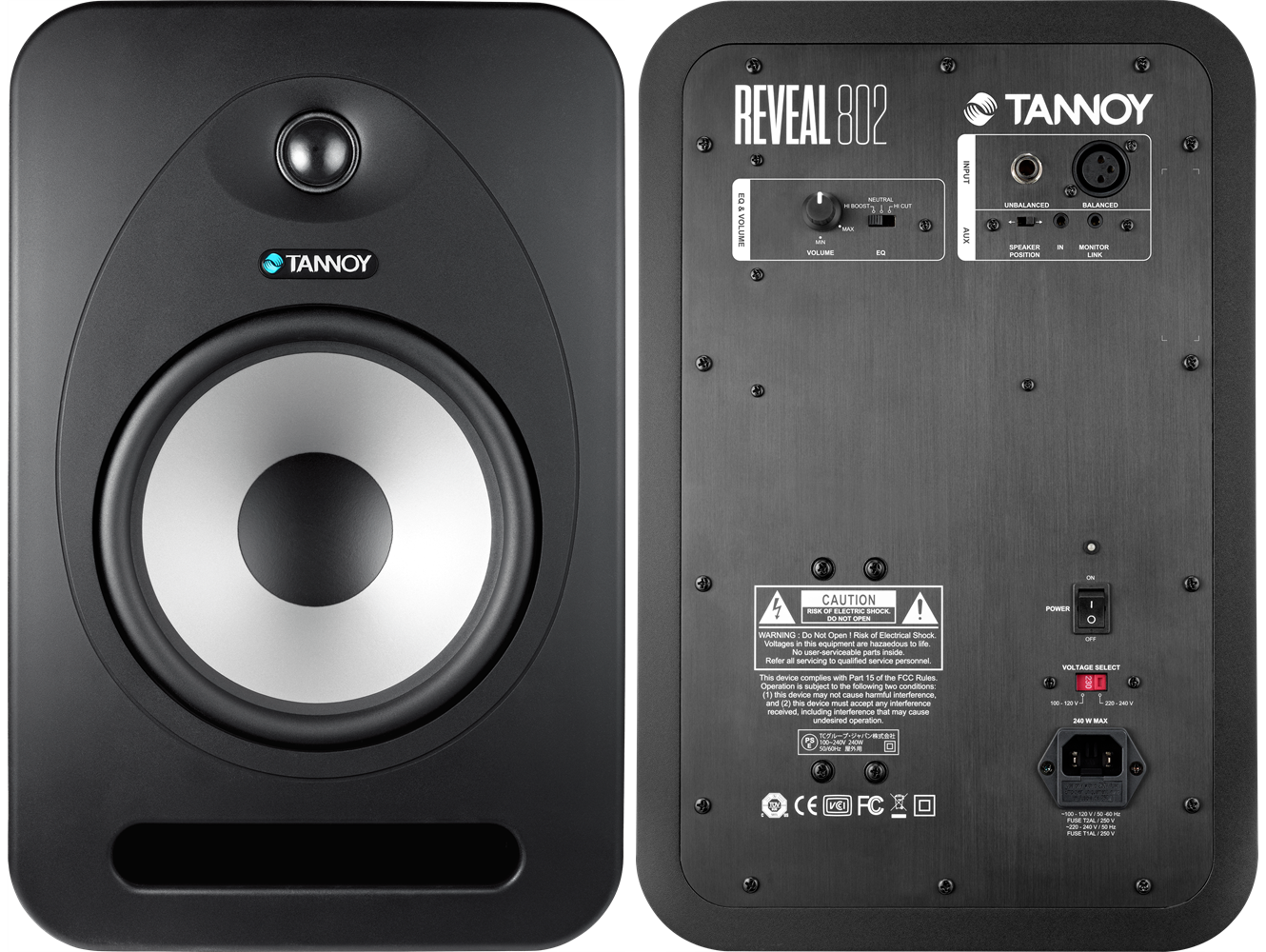

Reveal 802 SPEC
Frequency Response: 42Hz - 43kHz
Max SPL: 114dB
HxWxD Cabinet Dimensions:
15.35" x 10.00" x 11.81"
390mm x 254mm x 300 mm
Membrane Sizes:
Drive Unit Size, LF/Mid Range: 8" (200mm)
Drive Unit Size, HF: 1" (25mm) Soft Dome
Bi-amp Output Power, RMS
LF/Mid Range: 75 Watts
HF: 25 Watts
THD: < 0.4 %
Input Types and Impedances
Balanced: XLR, 20kOhm
Unbalanced: 1/4" Jack, 10kOhm
AUX Link: 1/8" Jack, 10kOhm
Output
AUX Link:1/8" Jack
EQ Options
Neutral HF Setting
+/-1.5dB HF Boost/CUT
Crossover Frequency: 1.8kHz
Switchable Power Supply Compatibility:
100-120V or 200-240V (50 - 60Hz)
Max Power Consumption: 240 Watts
Low Frequency Alignment: Optimized Front Port
