Sound Generation Method: Analog Modeling Synthesis System
Synthesizer Program
Multi Timbral: 2 (max, Split/Dual Mode)
Voices: 4 voices
Sound Source: 2 Oscillator + Noise Generator, Multi Mode Filter(-24dB/octLPF,-12dB/oct LPF/BPF/HPF) EG×2 LFO×2 Virtual Patch×4
Vocoder Program
Voices: 4 voices
Sound Source: 1 Oscillator+Noise Generator EG×1 LFO×2 8 Channels vocoder Level and pan of each channel can be edited Formant Shift function
Programs: 128 programs
Effects: Modulation effects (3 types), Delay (3 types), Equalizer Arpeggiator 6 types
Controllers: Real-Time control knob X 4 (3 level Selection), Arpeggio ON/OFF Keyboards 37 Keys (mini-keyboard, keyboard has velocity)

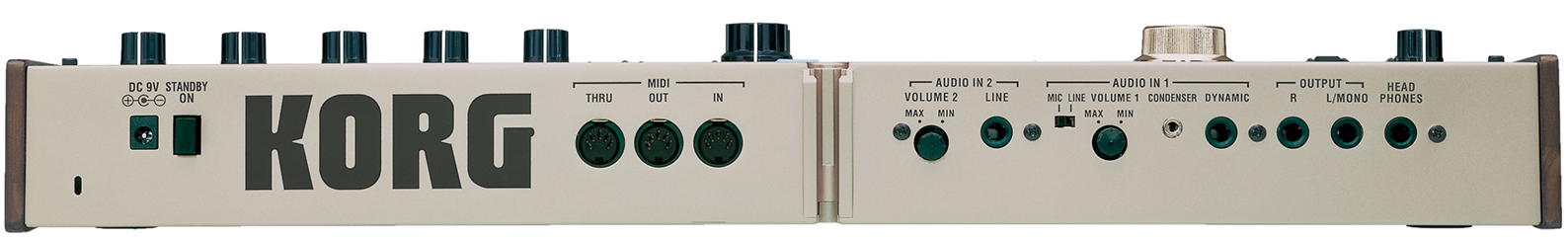

Inputs AUDIO IN 1,2, Level switch LINE/MIC, [AUDIO IN 1, 2 (LINE) ], [AUDIO IN 2 (MIC)]
Outputs L/MONO, R, Headphones MIDI IN, OUT, THRU
Display 3 characters×1 line with 8 segment LED
Power Supply DC 9 V (AC adapter), or six AA alkaline batteries (sold separately) Power Consumption 6.4 W (MAX) Dimensions
(W) x (D) x (H) 524 x 232 x 70mm/
Weight 2.2 kg (without batteries and included microphone)
Accessories
AC adapter (DC 9 V, 600 mA)
Condenser Microphone
