Tone Generator System: MMT (Multiple Modeling Technology)
Program Multi Timbral: Maximum 2 (when using Layer, Split, or Multi)
Voice polyphony: Maximum 8 voices (when using Vocoder, it is 4 voices)
Synth 2 oscillators + noise generator Oscillator 1 Waveform: 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In),
Modulation: Waveform, Cross, Unison, VPM Oscillator 2 Waveform: 4 types (Sawtooth, Pulse, Triangle, Sine)
Modulation:
Ring, Sync, Ring+Sync Waveshape Type: Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw,
SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost, Multimode Filters Filter 1: -24 dB/oct LPF ~ -12 dB/oct LPF ~ -12 dB/oct BPF ~ -12 dB/oct HPF ~
Thru, Filter 2: LPF, HPF, BPF (swichable)
Vocoder: 16 channel vocoder, adjustable level and pan for each channel, Formant Shift function, Formant Hold function
Keyboard 37 notes (Natural Touch mini-keyboard, velocity sensitive)
Controller Pitch bend wheel, Modulation Wheel
Effects Timbre 2 band EQ Master effect 2 units, 17effect algorisms.
Arpeggiator Six types: UP, DOWN, ALT1/2, Random, Trigger, Individual step on/off function Programs 128 programs (A/B?banks x 8 genres x 8 category)

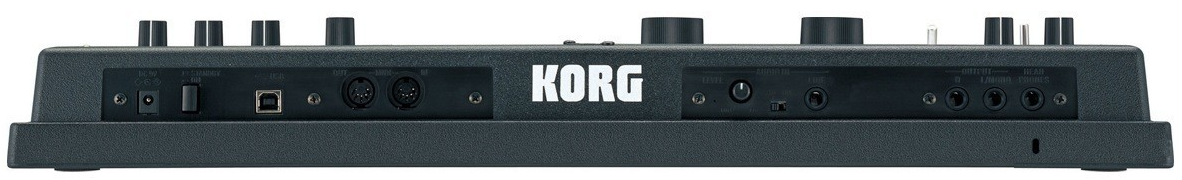

Inputs [AUDIO INPUT 1] (1/4” phone jack, unbalanced, with MIC/LINE switch) – Rear Panel
[AUDIO INPUT 1 (MIC)] (XLR jack / balanced) – Front Panel Outputs [L/MONO, R] (1/4” Standard phone jacks / unbalanced)
[Phone] (1/4” Stereo Standard phone jacks)
MIDI IN, OUT USB Type B Display Custom LCD
Power Supply: DC 9 V (AC adapter), or six AA alkaline batteries (sold separately)
Battery Life Approx. four hours (with alkaline batteries) Dimensions
(W) x (D) x (H) 556 x 231 x 73mm /
Weight 2.0 kg (without batteries and included microphone)
Accessories
AC adapter, Gooseneck Microphone,
