ה Minilogue בעל 41 נובים כל אחד בעל פעולה אחת, השולטים על זוג אוסילטורים אנלוגיים לחלוטין, מיקסר, פילטר אנלוגי VCF בעל מדרון 12dB ו- 24dB זוג מעטפות, Lfo, מגבר VCA, סיקוונסר המסוגל לשמור תווים ואוטומציות של עד 4
פרמטרים.
Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analog synthesis
Maximum Polyphony: 4 voices
Program: 200 programs (100 Presets / 100 Users) Each program includes voice mode and sequence data settings Up to eight favorite programs can be registered
Voice Modes: 8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)
VOICE MODE DEPTH can vary different parameters in each mode: Main Synthesis Parameter
VCO1: Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2: Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2 MODULATION: Cross Mod Depth, Pitch EG Int, Sync, Ring
MIXER: VCO1, VCO2, Noise
FILTER: Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
AMP EG: Attack, Decay, Sustain, Release
EG: Attack, Decay, Sustain, Release
LFO: Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
DELAY: Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
Sequencer: 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters: Controls
41 dedicated panel controls deliver immediate parameter access
A slider can control different parameters for each program

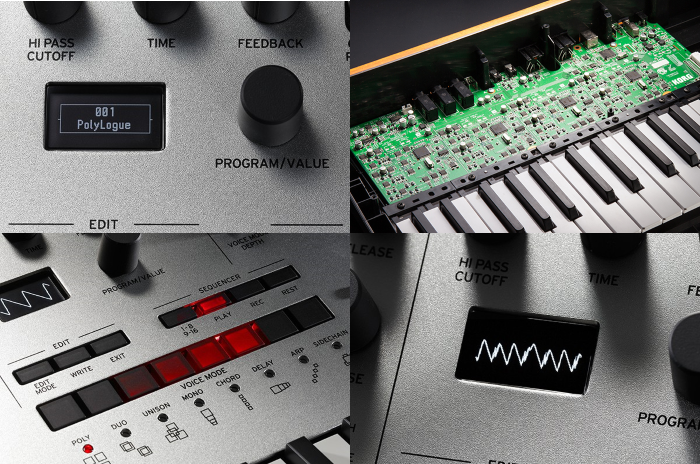

Display: Real-time OLED oscilloscope provides visual feedback of parameter changes
Connectors: Headphones (6.3mm stereo phone jack)
Output (6.3mm monaural phone jack)
Audio In (6.3mm monaural phone jack)
Sync In (3.5mm monaural mini jack)
Sync Out (3.5mm monaural mini jack)
MIDI In , MIDI Out , USB Type B
Power Supply, AC adapter (DC9V)
Power Consumption: 8 W
Dimensions (W x D x H): 500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
Weight: 2.8 kg / 6.17 lbs.
Included Items: AC adapter
